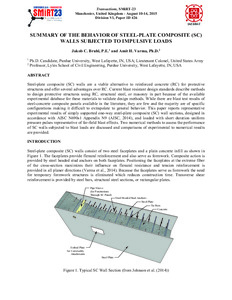

Summary of the Behavior of Steel-Plate Composite (SC) Walls Subjected to Implusive Loads
Loading...
Authors
Bruhl, Jakob C.
Varma, Amit
Issue Date
2015
Type
Conference presentations, papers, posters
Language
Keywords
Steel-plate composite (SC) walls
Alternative Title
Abstract
Steel-plate composite (SC) walls are a viable alternative to reinforced concrete (RC) for protective structures and offer several advantages over RC. Current blast resistant design standards describe methods to design protective structures using RC, structural steel, or masonry in part because of the available experimental database for these materials to validate design methods. While there are blast test results of steel-concrete composite panels available in the literature, they are few and the majority are of specific configurations making it difficult to extrapolate to general behavior. This paper reports representative experimental results of simply supported one-way steel-plate composite (SC) wall sections, designed in accordance with AISC N690s1 Appendix N9 (AISC, 2014), and loaded with short duration uniform pressure pulses representative of far-field blast effects. Two numerical methods to assess the performance of SC walls subjected to blast loads are discussed and comparisons of experimental to numerical results are provided.
Description
Citation
Bruhl, Jakob C., and Amit H. Varma. 2015. “Summary of the Behavior of Steel-Plate Composite (SC) Walls Subjected to Impulsive Loads.” Structural Mechanics in Reactor Technology (SMiRT-23), August.
Publisher
Structural Mechanics in Reactor Technology (SMiRT-23)
